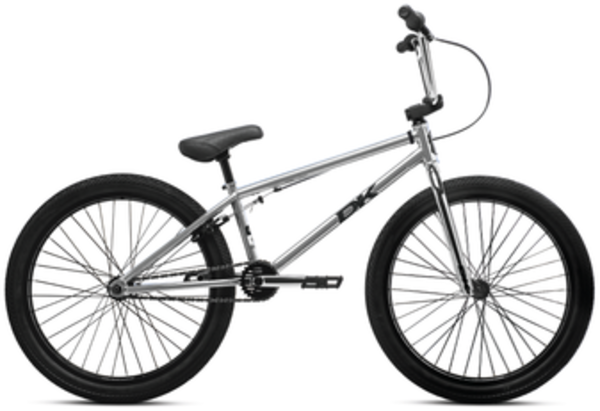

DK Bicycles Helio 24"
Details
All new. All chromoly. The DK Helio 24 expands on the tried & true chromoly frame, fork, bars and cranks from our 20-inch version. Two color schemes that both look incredible, especially out in the sun. 24-inch wheels are fun on all terrain. The Helio 24 heats it up and holds it down at the park, on the street or at the trails, all at a realistic price.
SPECIFICATIONS
TOP TUBE- 21.5”
CHAIN STAY- 15”
HEAD TUBE- 73.5º
SEAT TUBE- 72º
FRAME- 100% chromoly with custom seat stay bridge, removable brake mounts
FORK- 100% chromoly with built-in bearing race, internally threaded pre-load bolt, tapered legs
HANDLEBAR- 8.25” rise, 100% chromoly
GRIPS- DK Tsuka with press-in bar plugs
STEM- DK Jump top load, 53mm reach
HEADSET- Sealed integrated
BRAKE- Wise alloy U-brake
LEVER- Wise alloy, hinged
BB- 19mm sealed Mid
CRANKS- Wise tubular chromoly 3-piece, 170mm, 8-spline spindle
SPROCKET- DK Tilt 26-tooth, alloy
CHAIN- KMC Z-510
PEDALS- DK Blender platform
RIMS- Wise Rectrix2, double wall, 36mm wide, 36-hole
FRONT HUB- Wise alloy, fully sealed, 3/8” chromoly axle
REAR HUB- Wise alloy, fully sealed, 14mm chromoly axle, 10-tooth driver
TIRES- 24x2.1” Multi surface design, 65psi
SEAT- DK Stealth Pivotal
SEAT POST- Stealth Pivotal, 25.4mm, alloy
SEAT POST CLAMP- Integrated
EXTRA FEATURES- 3D head tube badge, removable brake mounts
WEIGHT 25.3 lbs
